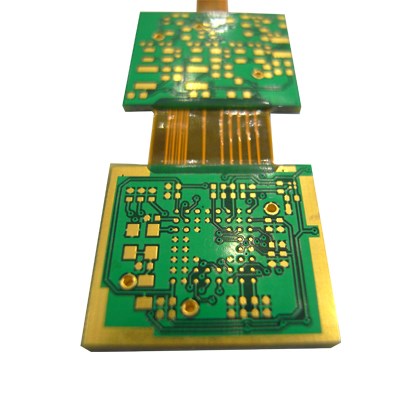

Multilayer PCB: Rigid Flex PCB

Rigid Flex PCB circuit boards are composed of a combination of rigid and flexible circuit boards that are permanently connected to one another.

Rigid flex PCB designs are more challenging than the design of a typical rigid board environment,as these boards are designed in a 3D space,

which also offers greater spatial efficiency.

By being able to design in three dimensions rigid flex designers can twist,

fold and roll the flexible board substrates to achieve their desired

shape for the final application’s package.
